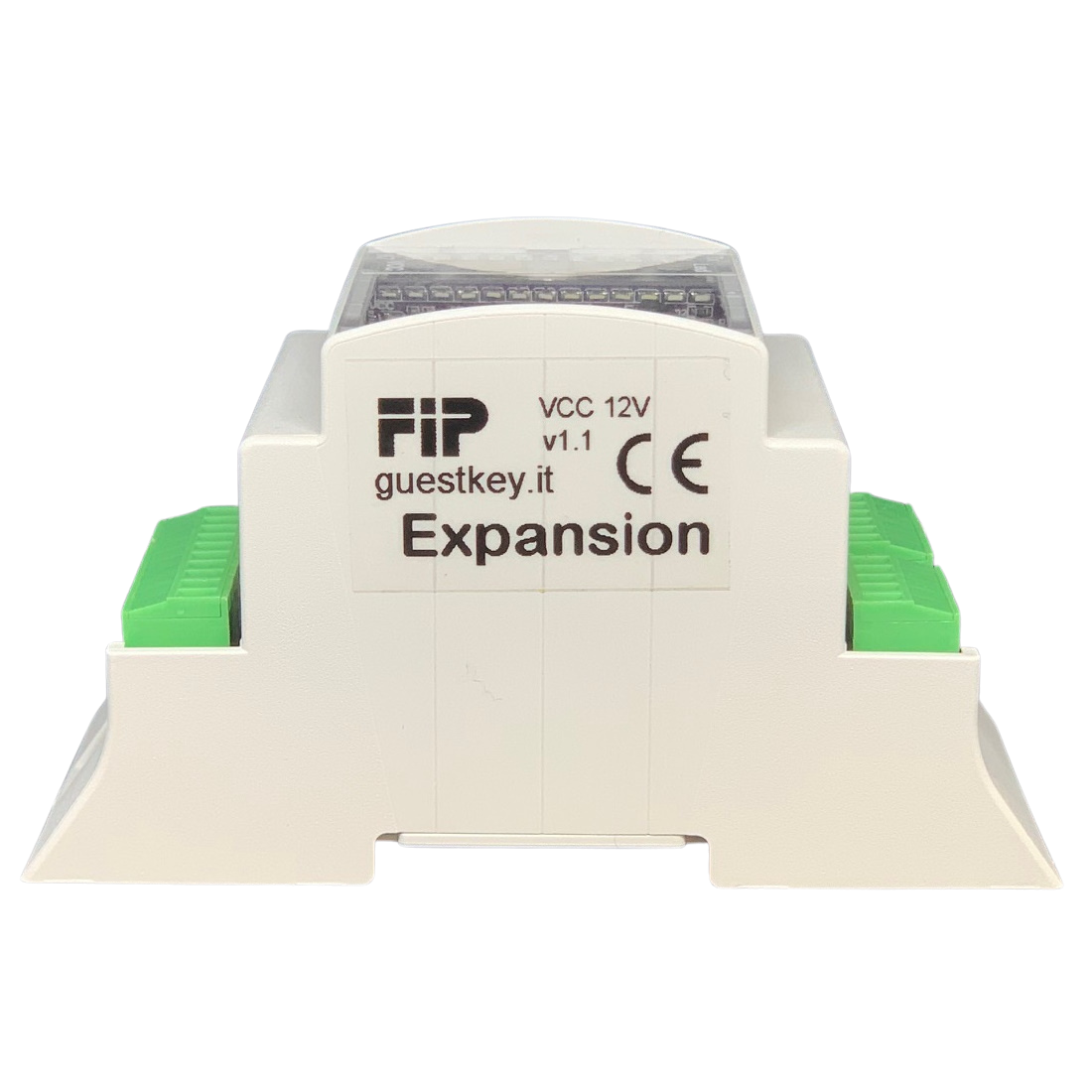

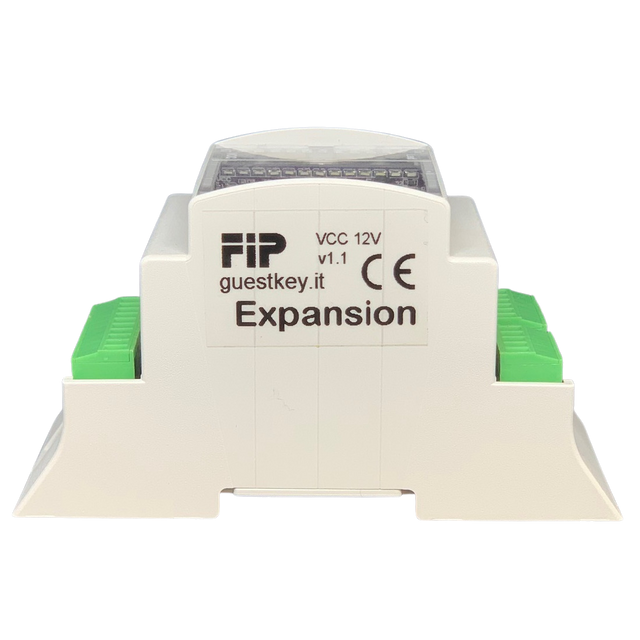

Aladino Home Automation Expansion (7+4) – Access Control Add-on Module

Expand the functionality of your home automation system with the Aladino 7+4 Expansion module.

Add new outputs and inputs to control more doors, devices, and automations simply, securely, and scalably.

With Aladino, you can grow your system without limits:

✔ Connect multiple modules in cascade
✔ Manage hotels, B&Bs, gyms, and large facilities
✔ Control access and devices from a single platform

Key Features:

• 🔌 7 relay outputs (5A) for direct control of: lights, shutters and blinds, electric locks, and electrical systems
• 🔘 4 configurable inputs for sensors and commands
• 🔗 RS485 connection for simple and stable connection
• 🔄 ON/OFF or pulse (PULSE) relay mode
• ⏱️ Activation time configuration (Ta / Tb)
• ⚡ 12V DC power supply
• 📦 DIN rail installation (electrical panel)

How it works:

The module connects to the Aladino control unit via a RS485 twisted pair cable.

• You can add as many expansions as you want
• Each module increases the number of controllable devices
• Complete management directly from your smartphone or management software

Advantages

• Simple and immediate expansion

• No structural modifications
• Centralized control of all devices
• Greater automation and flexibility
• Scalable system over time

Technical Specifications

• Outputs: 7 relays 5A
• Inputs: 4
• Communication: RS485
• Power supply: 12V DC
• Installation: DIN rail
• Dimensions: 55 x 108 x 60 mm

If you already have an Aladino system, this module is the perfect solution to increase capabilities without changing your existing setup.

More inputs, more outputs, more control.

• Hotels and B&Bs with multiple rooms
• Gyms and wellness centers
• Condominiums and multi-access facilities
• Advanced home automation systems

Expand your home automation system and manage every access and device with a single click.
