Airtight Hinged Door, Plastic Laminate, Aluminium Frame

Description

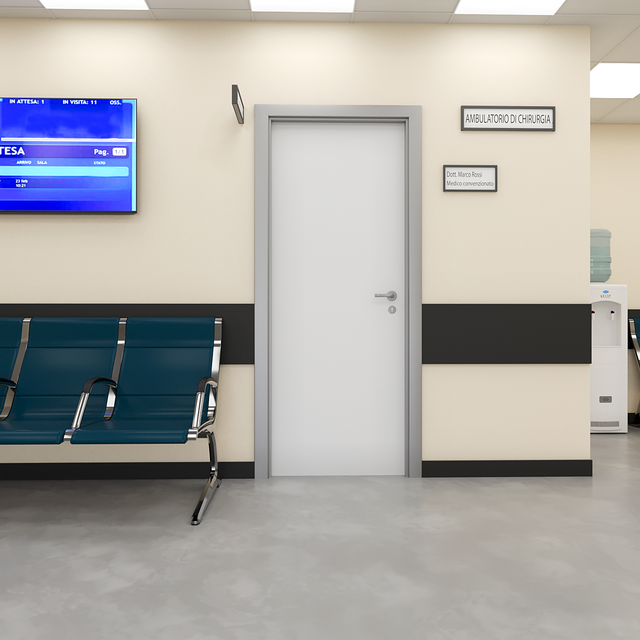

Airtight Hinged Door for Hospitals and Healthcare Facilities

Airtight hinged door with a plastic laminate panel and an extruded aluminium frame, designed for hospitals, clinics, laboratories, schools and community buildings. Air permeability is certified class C to UNI EN 12207:2017 and UNI EN 14351-2:2018, under both positive and negative pressure.

Certified Air Permeability

Test standard: UNI EN 1026:2016.
Classification: UNI EN 12207:2017 and UNI EN 14351-2:2018.
Final class: C, under positive and negative pressure.
Related to the length of the opening joints: class B.

Extruded Aluminium Frame

Door frame: straight, in extruded aluminium with no sharp edges, easy to clean and sanitise.
Jambs: aluminium alloy profiles, 15/10 thick, with telescopic joint.
Trims: uprights and cross members joined with aluminium brackets.

Door Panel

Total thickness: 44 mm.
Perimeter frame: fir wood, 36 x 36 mm.
Core: honeycomb; 30 dB soundproof version on request.
Covering: ABET PRINT plastic laminate, 9/10 mm, resistant to scratches, solvents and abrasion.
Finish: Matt White Plastic Laminate.

Included

Magnetic lock.
Packaging for shipping.

On Request

Antibacterial class 1 laminate.
Antibacterial handles.

Applications

Hospitals, clinics and healthcare facilities
Laboratories
Schools and community buildings
Offices and public buildings

For non-standard sizes or special versions, contact us for a personalised quote.

See all the products in the Hermetically Sealed Doors collection.

How to take measurements

You need 3 measurements of the opening in the wall, not of the old door.

AWidthWall to wall, at the top, middle and bottom. Keep the smallest.

BHeightFrom the finished floor to the top edge of the opening, left and right.

CWall thicknessPlaster included. Standard sizes are for walls from 11 to 13.5 cm.

Your opening (A × B)	Choose on this page	Door with frame
70 × 215	60 × 210	68 × 213.5 × 11-13.5
80 × 215	70 × 210	78 × 213.5 × 11-13.5
90 × 215	80 × 210	88 × 213.5 × 11-13.5
100 × 215	90 × 210	98 × 213.5 × 11-13.5

Is your opening a different size? Choose “Out of Measure”: we make it to measure and contact you after purchase.

Thicker or thinner wall? Message us before ordering. For walls of 14 cm or more there's also the Complete Jamb Extension Kit: we'll tell you whether it suits this door.
