Invisible Flush-to-the-Wall Door with Magnetic Lock

Description

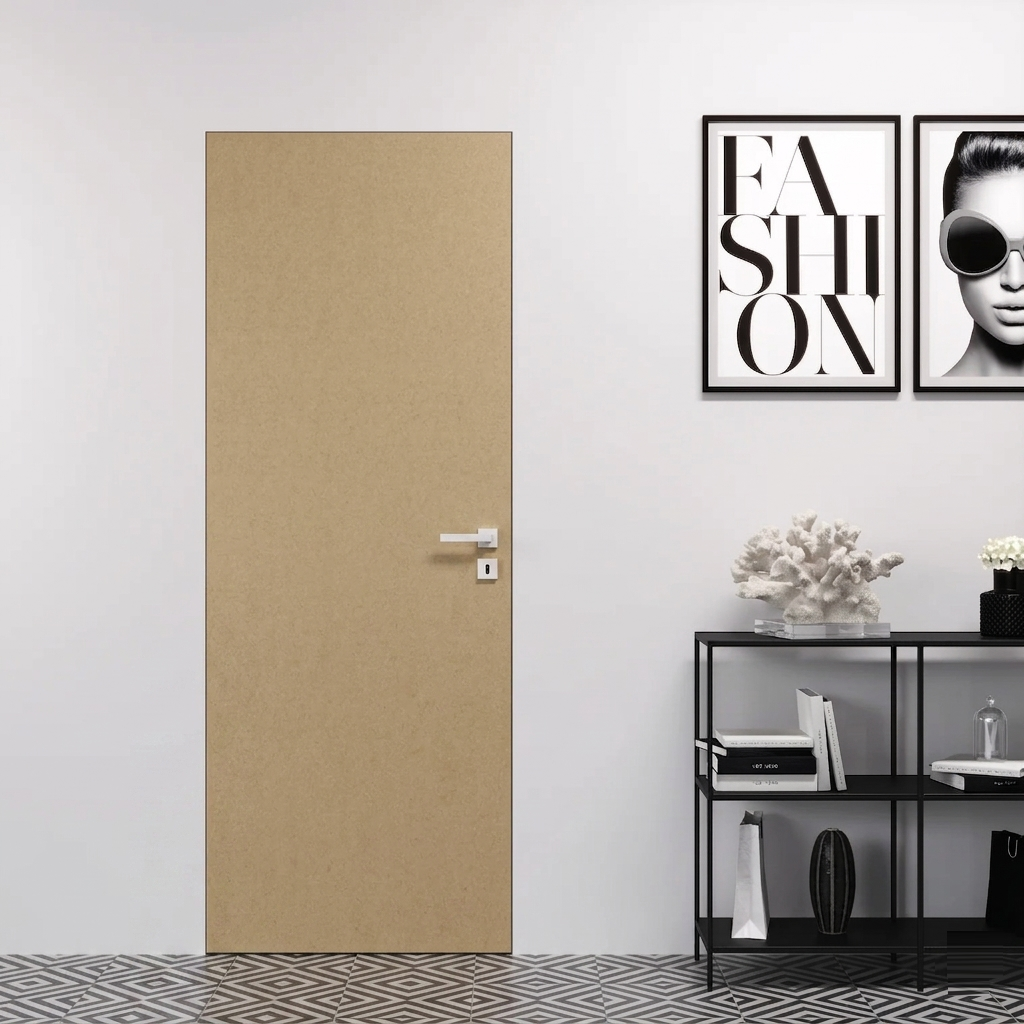

Invisible Raso Wall Door with Magnetic Lock

Explore the invisible door Raso Wall with magnetic lock, the ideal solution to merge the door and the environment into a single entity. Designed for quick and easy installation on plastered or plasterboard walls, this door is perfect for both renovations and new constructions. Thanks to its sturdy aluminium structure and modern and minimalist design, the invisible door Raso Wall stands out for its elegance and functionality.

Technical Features

Aluminium Structure: Frame in passivated extruded aluminium (EN AW 6060 alloy - Anticorodal 063) with klevar plaster support mesh, which prevents cracks between the wall and the door.
Door Panel: 44/54 mm thick honeycomb structure with solid wood frame and high density polystyrene soundproofing, covered with Class 1 sanded MDF with low formaldehyde emissions.
Invisible Hinges: 3D adjustable in three axes, tested for 200,000 cycles, allow precise adjustment in height, width and depth.
Magnetic Lock: With key hole, also available in versions with latch hole and cylinder hole. Lock options available: roller lock, anti-panic, with electric or mechanical strike.

Advantages

Minimalist Design: Perfect integration with the wall, without edges and skirting boards, for a modern and clean look.
Versatile Installation: Suitable for masonry and plasterboard walls, applicable on existing or new floors.
Customization: Wide range of invisible lock and handle options for every need.

Certifications

Hinges: Certified for 200,000 cycles and fire resistant for 30 minutes (EN-16342).
Lock: Certified for 50,000 cycles.

Finishing Options

Invisible door with wallpaper
Satin wall door with mirror
Pocket door painted like the wall
Invisible door with boiserie

Optional Available

Invisible Handle: Completely flush, it highlights the invisibility of the door.
Handle with Latch: Ideal for bathrooms and other solutions that require a key lock.
Electric Strike: 12 Volts for remote operation of the latch.
Concealed Door Closer: Ideal for a clean aesthetic, with no visible handle or lock.

Make Your Dream Come True

Imagine a house without edges, skirting boards and protruding doors; a house full of light and personality with our invisible Raso Wall doors. Contact the expert of the Raso Wall door for more information and customizations.

This model is part of the Flush Doors collection.

How to take measurements

On this page choose the door and your wall type: the opening to prepare in the wall is 1 cm larger than the frame.

The opening is 1 cm larger than the frame. The door you choose on the product page is the clear passage.

Doorthe clear passage

Framedoor +7 in width, +3 in height

Openingframe +1 cm

Door 210 cm tall

Choose on this pageOpening in the wall

60 × 21068 × 214frame 67 × 213

70 × 21078 × 214frame 77 × 213

80 × 21088 × 214frame 87 × 213

90 × 21098 × 214frame 97 × 213

Is your opening a different size? Choose “Out of Measure” or message us.

Full guide with drawings →Questions? Message us on WhatsApp

Installation

It is installed while the wall is being built, in 12 steps. The sheet has two versions: choose the one for your wall.

PlasterboardDoor first, then the boardsStructure with the profiles, door plumbed, frame screwed with self-drilling screws, boards onto the edge of the frame.

MasonryAnchors, mesh and 12 hoursFrame with spacers, anchors set in, overlapping mesh. The spacers stay until the cement is dry: 12 hours.

In both6 mm off the floorDoor balanced with a wedge, filler between frame and wall, both sides painted together, then the hinges are adjusted.
